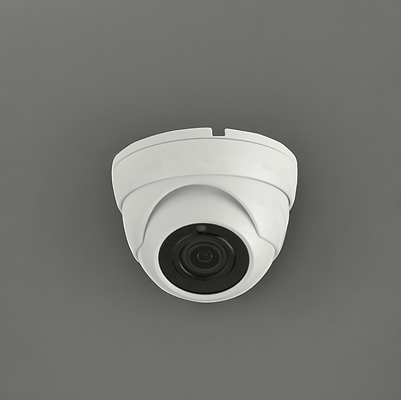

IP CAMERA 5MP W695AHBB94CA

Camera

Image Sensor

1 / 2.8" Sony CMOS

Effective

5 megapixels

Electronic Shutter

Auto, 1/25s ~ 1/100000s

Min. illumination

0.01Lux@F1.2(AGC ON), 0Lux IR on Day/Night

Day / Night

Auto/ Color/ (B/W)/ Timing

WDR

Digital WDR

White Balance

Auto / Manual

BLC / HLC

Support

DNR

2D / 3DDNR

Others

AGC, Motion Detection, Privacy Mask, Flip, OSD overlay

Encode

Video Standard

H.264 / H.265

Video Resolution

Main Stream

25fps@5MP(2592x1944)/4MP(2592x1520)/3MP, 30fps@1080P/720P

Sub stream

25fps@D1/VGA/360P/CIF, etc.

Video Bitrates

512Kbps - 12Mbps, VBR/CBR

Audio Standard

G.711-u/G.711-a

Built-in Mic

Optional

OSD Overlay

Title and Time overlay

IR LED

IR LED

18 pcs

IR Distance

30 m

Lens

Focal Length

3.6mm fixed lens

Optional Function

POE, Audio

Network Service

Protocol

HTTP/RTSP/FTP/SMTP/DHCP/NTP/NFS, etc.

P2P

Yes

Web

Browser

IE, Firefox (32bit ESR), etc.

Media

CMS, Android, IOS

ON-VIF

17.06 compatible

General

Network Port

1-RJ45, 100Mbps, POE optional

Power Supply

12 VDC ± 10%

Power Consumption

< 8 W

Operating Temp.

-30°C-(+60)°C, 10%-90%RH
